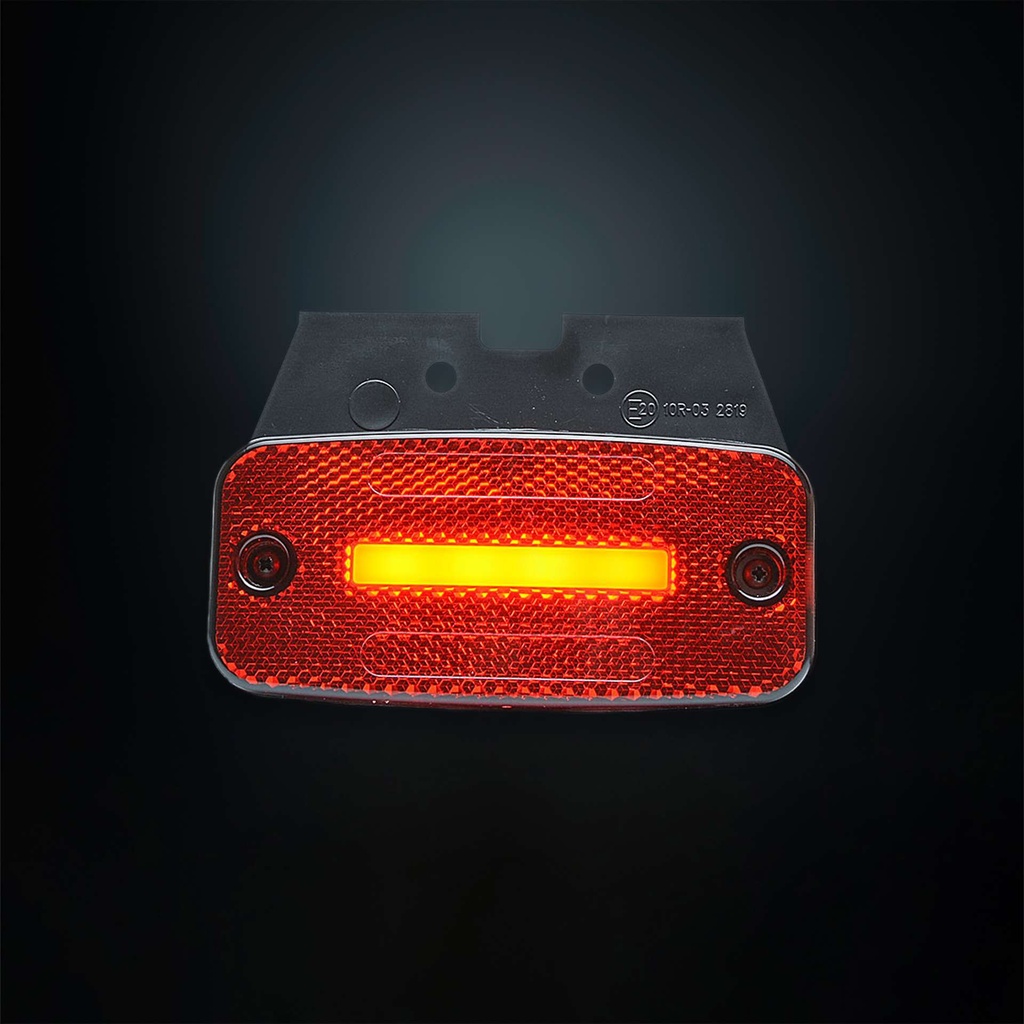

FREEDOM ADR One Line Rear Position Light

The Freedom ADR Neon One Line rear position light is a robust and ADR-approved rear marker light designed for professional transport vehicles. Operating on 10–32V DC, with R3, R7 and R10 approval, IP66/IP68 protection, a 90 mm CC measurement, and backed by a 5-year warranty, it provides reliable rear visibility for trucks, trailers, and other commercial vehicles.

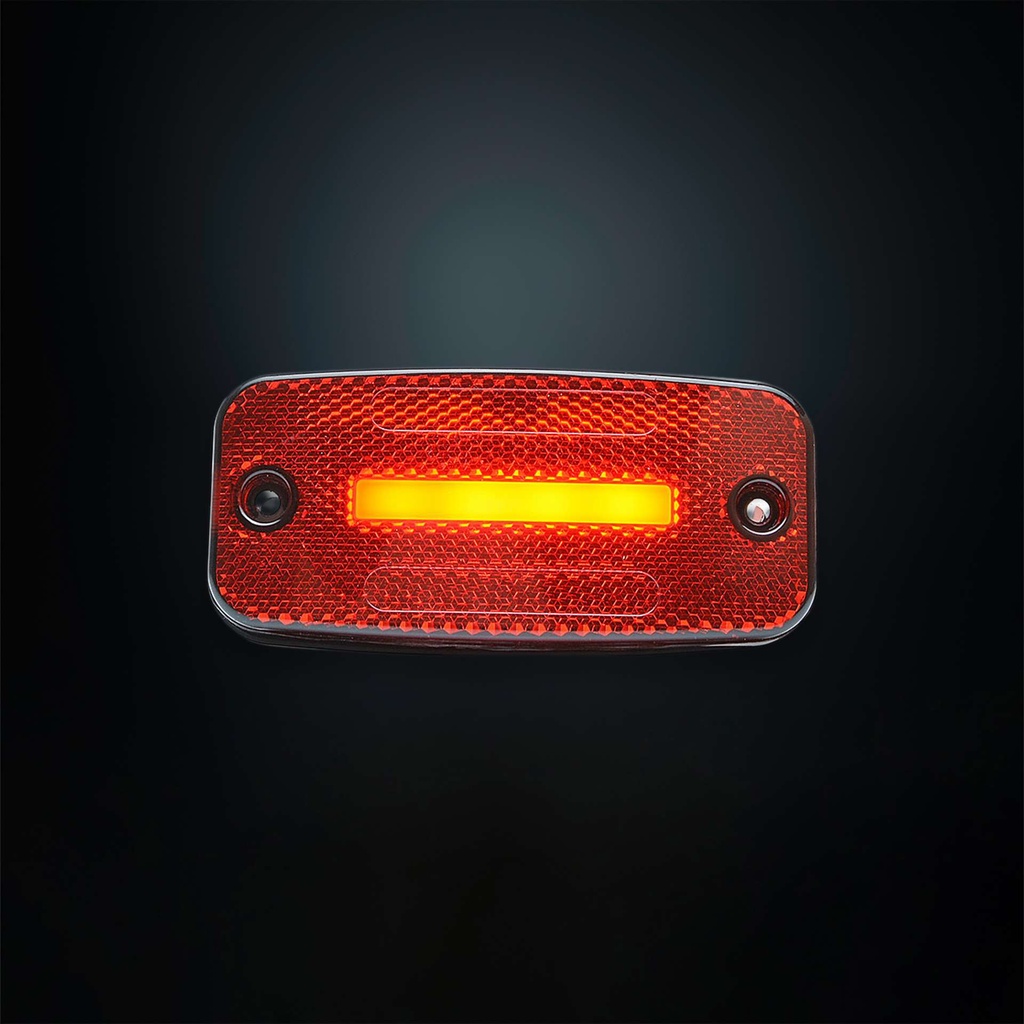

Continuous Neon One Line light signature

The Freedom ADR Neon One Line rear position light features a continuous illuminated light strip that creates a smooth, uniform light signature. Unlike individual visible LEDs, the light is presented as a single illuminated line, giving the vehicle a modern and refined appearance while providing clear rear position lighting.

Designed for professional transport

Designed for trucks, trailers, and commercial vehicles, this rear position light combines dependable performance with a compact design that is easy to integrate into both new-vehicle builds and replacement installations.

• Rear marker function – Improves vehicle visibility from the rear.
• 10–32V DC compatibility – Suitable for both 12V and 24V vehicle systems.
• Neon One Line light signature – Smooth, continuous illuminated light strip.
• Red lens – Clear rear position lighting.
• ADR approved – Suitable for vehicles used in hazardous goods transport.

Robust and durable construction

Built for demanding transport environments, the light combines a durable polycarbonate housing and lens with excellent resistance to vibration, moisture, road spray, and daily vehicle washing. The included hanging bracket provides a secure mounting solution while keeping installation straightforward.

• Polycarbonate housing – Strong and impact-resistant construction.
• Polycarbonate lens – Durable material with excellent optical clarity.

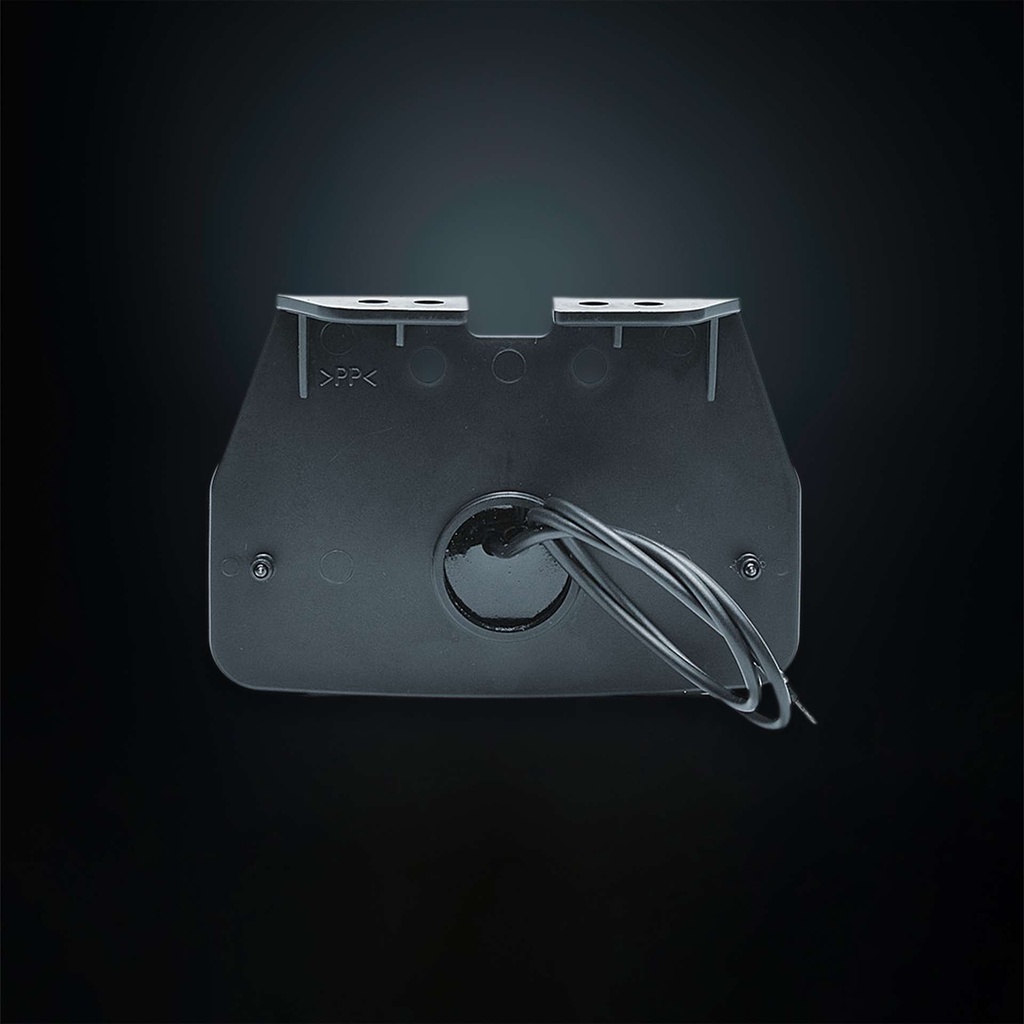

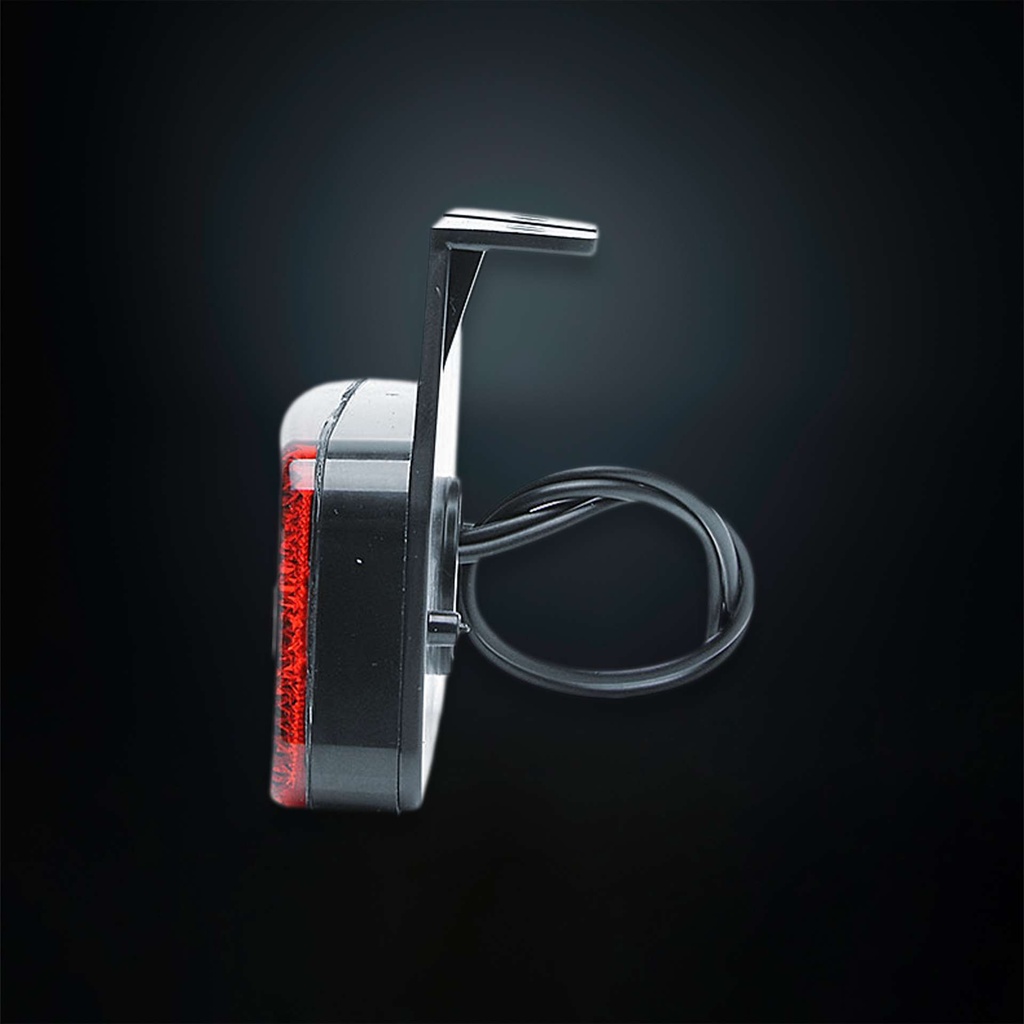

• Hanging bracket – Simple and robust mounting solution.
• IP66/IP68 rated – Protected against dust and water ingress.
• Built for professional transport – Designed for long-term reliability.

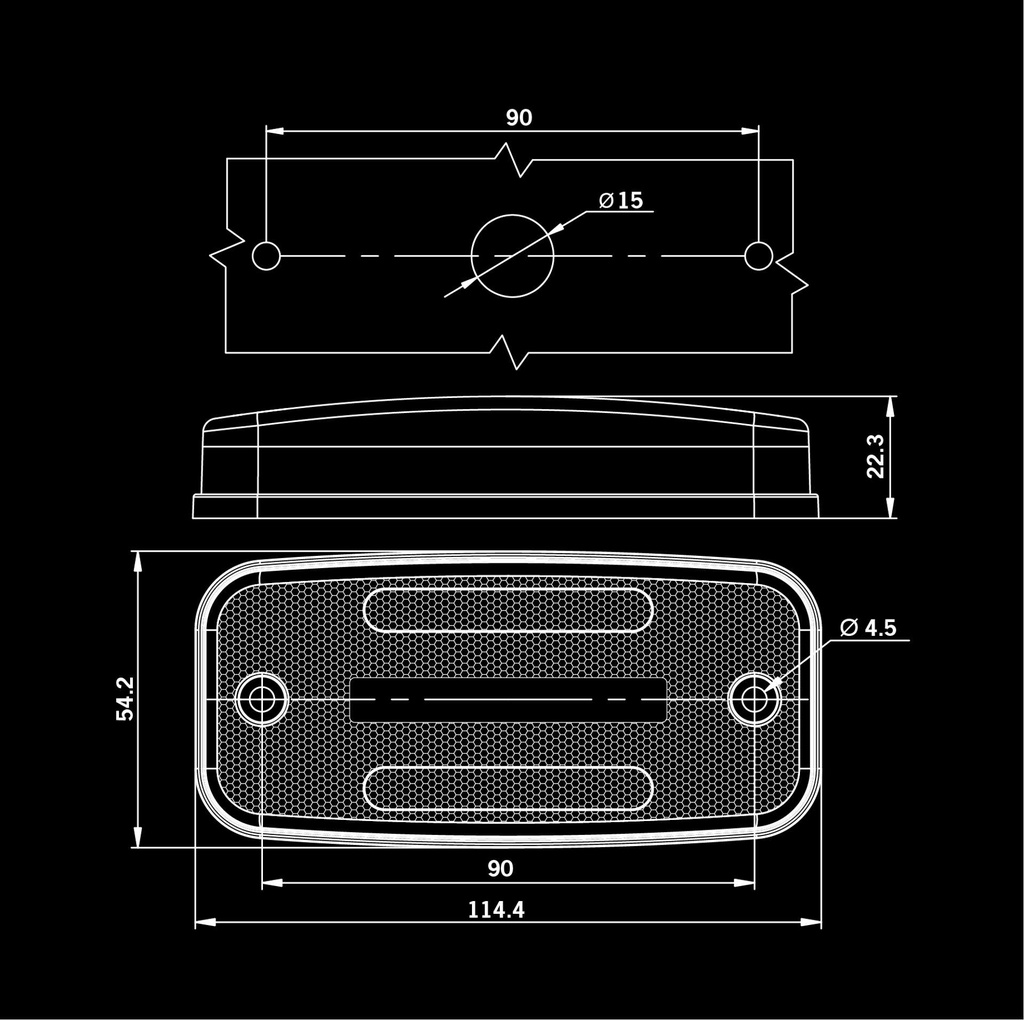

Installation and dimensions

The included hanging bracket allows quick installation on trailers, truck bodies, and other commercial vehicles. Its compact dimensions make it suitable for installations where space is limited.

• Length: 114.4 mm
• Height: 54.2 mm
• Height including bracket: 76 mm
• Depth: 22.3 mm
• CC measurement: 90 mm
• Cable length: 240 mm
• Connection: Cable
• Voltage: 10–32V DC

ECE approved for road use

The Freedom ADR Neon One Line rear position light is certified according to:

• R3 approval
• R7 approval – Rear position light compliance.
• R10 approval – Electromagnetic compatibility certification.
• ADR approved – Suitable for hazardous goods transport vehicles.

5-year warranty

The Freedom ADR Neon One Line rear position light is covered by a 5-year warranty, providing long-term reliability for drivers, transport companies, workshops, and vehicle manufacturers.
